Specification:Model: YL-360WDimensions: 180x90x63mmBattery type: LiFePO4 batteryWorking power: 100-120Vac, 50 ~ 60HzOutput voltage: 14.6V (For 4S LiFePO4 Battery)Output current: 20Abattery Protection: SCP,OVP,OCP,OTPCharging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent chargingCharging efficiency: ≥85% (full load)Working temperature: -5 ℃ ~ +40 ℃Storage temperature: -40 ℃ ~ +70 ℃AC power cord, DC connector can be customized.Operating Instruction1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.LED Indicator:LED 1 red: Power on.LED 2 red: Battery being charged.LED 2 Flash: Battery will be charged completely soon.LED 2 green: Battery has been charged completely.Package:1* 14.6V 20A charger1* US standard power cable1* Operating manual2* Fuse for replacin

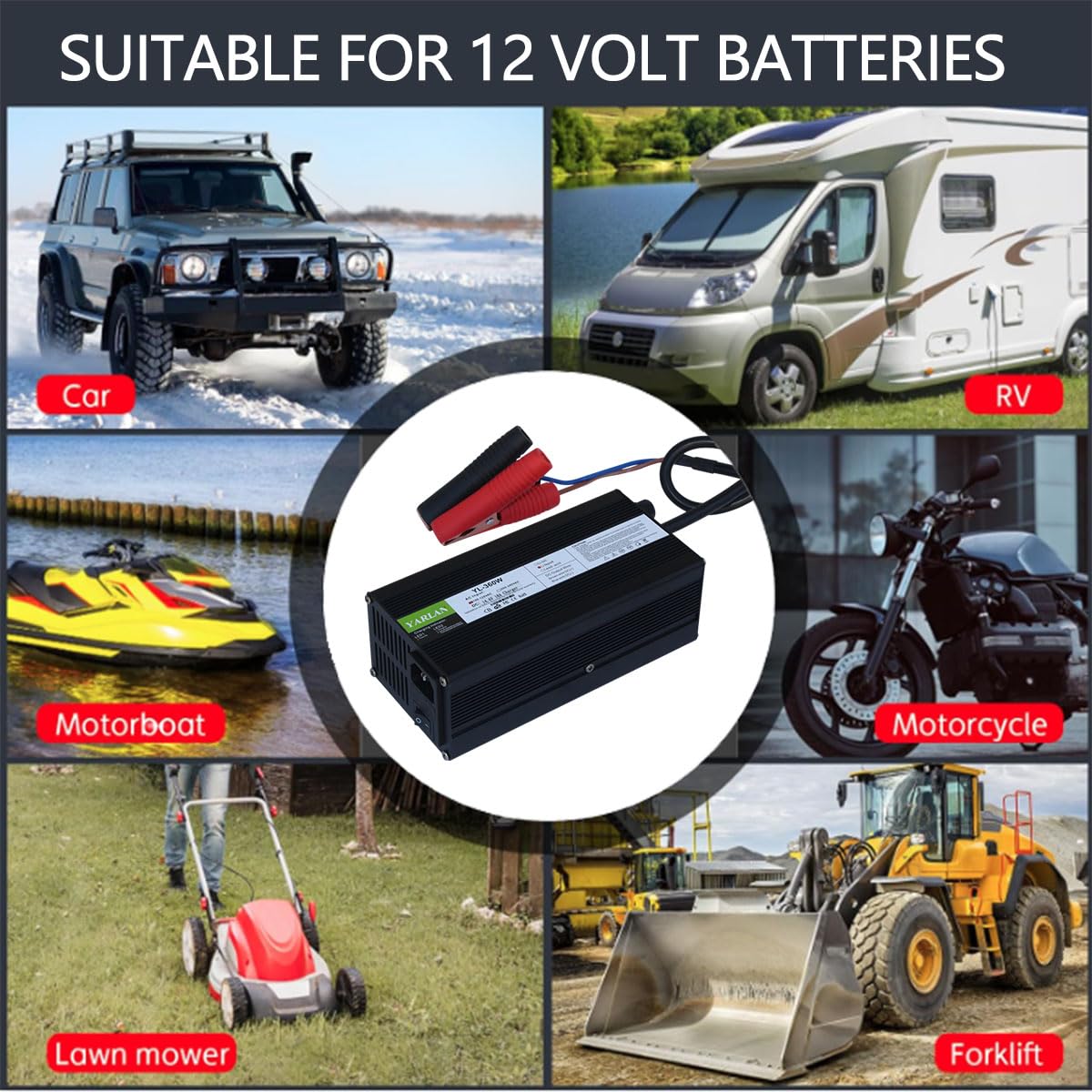

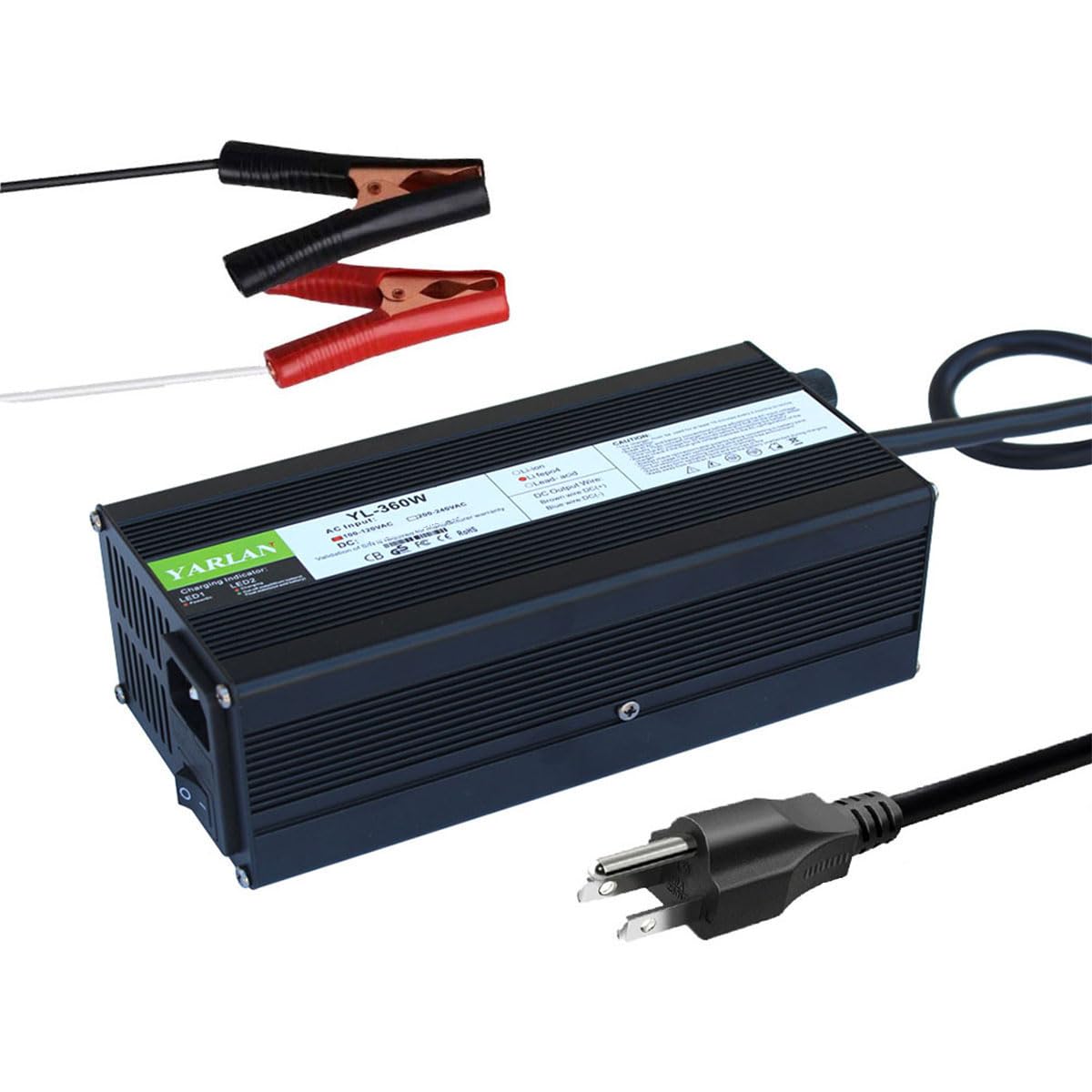

⭕DC Output Plug by The is Shown in Figure Alligator Clip , Applicable to Battery Type 12V (12.8V 14.4V) LiFePO4 Battery Pack
?AC Input 100-120Vac, 50-60Hz; DC Output 14.6V 20A, Provide 2* Replace Fuse 1* American Standard Power Cord
⭕Intelligent Charging Mode Constant Current - Constant Voltage - Trickle to Ensure That The Battery is Fully Charged
✅Over voltage Protection, Over Current Protection, Short Circuit Protection, Reverse Protection

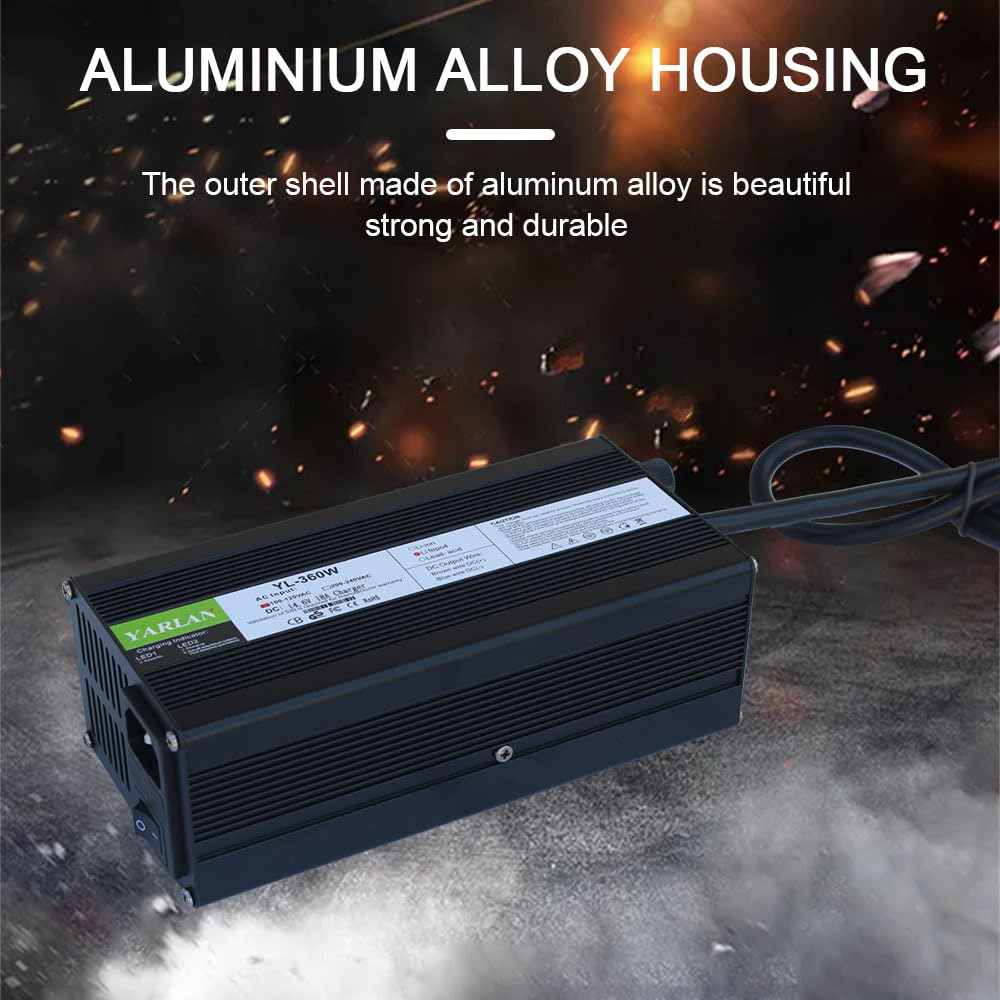

⭕Equipped With LED indicator light and Cooling fan, The Aluminum Shell is Beautiful and Durable, and The Cooling Speed is Faster,Longer service life
